CCA Cat5e Outdoor Waterproof Ethernet Cable HDPE Insulation 305m Per Roll

  • 1
  • 2

Brand Name : BLG/OEM/ODM

Model Number : CAT5e LAN Cable

Certification : CE/ROHS/ISO

Place of Origin : China

MOQ : 50 rolls

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 2 container /week

Delivery Time : 7~15days

Packaging Details : 305M per roll per easy pull box

Item : UTP Outdoor Cat5e

Conductor Material : BC/CCC/CCA

Wire Guage : 24/26/28AWG

Insulation : HDPE

Jacket : PE

Color : Black

Contact Now

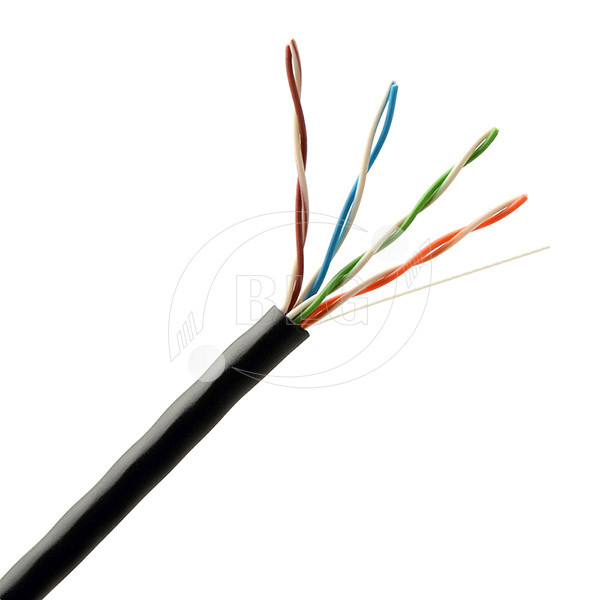

Outdoor UTP Cat5E LAN Cable Waterprooft Copper

Conductor 305m per Roll

Specifications for reference (we can do the cable as your reqiuments)

Product Name: UTP CAT5E Outdoor Cable

Manufacturer code: BLG052401A

Category: CAT5E cables

Manufacturer: BLG

High quality Cat 5e Ethernet cable for all local area networks

connections. The Cat 5e cable is suitable for Fast Fast

Ethernet and Gigabit networks. The RoHS-certified product is

individually wrapped in plastic bag with product code and

the type of product labeling.

All Cat5e / 6 / 6A cables imported by Microdata

the wires are made of copper (Bare Copper, BC) and not in them

no messy performance-impairing, endurance

lower or lower fire safety

Technical information:

• Cable type: Cat 5e UTP

• Conductor : 24AWG BC/CCA

• Insulation: 0.9mm HDPE

• Rip cord: Yes

• Jacket Material: PE

Conductor Insulation Core Number Filler Jacket
AWG

Specification

(mm)

 Material

Thickness

(NOM.mm)

 Material

Thickness

(NOM.mm)

 OD (NOM.mm)
26 1/0.404 HD-PE 0.18 4P PE Cross PVC or LSNH 0.55 5.5
7/0.16 HD-PE 0.18 4P PE Cross PVC or LSNH 0.55 5.5
24 1/0.58 HD-PE 0.18 4P PE Cross PVC or LSNH 0.55 6.5
1/0.58 HD-PE 0.18 4P FM-PE Thin slice PVC or LSNH 0.55 6.0
7/0.203 HD-PE 0.18 4P PE Cross PVC or LSNH 0.55 6.2
7/0.203 HD-PE 0.18 4P FM-PE Thin slice PVC or LSNH 0.55 5.8

Frequency Return Loss Attenuation NEXT PSNEXT ELFEXT PSELFEXT Characteristic Impedance Transmission Delay
MHZ dB dB ≥dB dB ≥dB ≤dB ohm ≤ns/100m
1.0 23.0 2.0 65.3 62.3 64.0 61.0 100±15 570.0
4.0 23.0 4.1 56.3 53.3 52.0 49.0 100±15 552.0
10.0 23.0 6.5 50.3 47.3 44.0 41.0 100±15 545.4
16.0 23.0 8.2 47.2 44.2 39.9 36.9 100±15 543.0
20.0 23.0 9.3 45.8 42.8 38.0 35.0 100±15 542.0
31.25 21.0 11.7 42.9 39.9 34.1 31.1 100±15 540.4
62.5 18.0 17.0 38.4 35.4 28.1 25.1 100±15 538.6
100.0 16.0 22.0 35.3 32.3 24.0 21.0 100±15 537.6

CCA Cat5e Outdoor Waterproof Ethernet Cable HDPE Insulation 305m Per RollCCA Cat5e Outdoor Waterproof Ethernet Cable HDPE Insulation 305m Per Roll
