4 Pairs LAN Cable Cat5e 305M Bare Copper Unshielded, PVC Jacket

  • 1
  • 2
  • 3

Brand Name : BLG / OEM / ODM

Model Number : ETHERNET LAN CABLE

Certification : CE / ISO / RoHS

Place of Origin : CHINA

MOQ : 100 Rolls

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 3000 Rolls per Week

Delivery Time : 7 - 15 Work Days

Packaging Details : 305M / Roll / Easy Pull Box, 2 Boxes / Carton

Item : Cat5e LAN Cable

Cable Type : Unshielded

Conductor : 24AWG / 26AWG CU / CCA

Jacket : PVC

Package : 305M / Roll / Box

Contact Now

4 Pairs LAN Cable Cat5e 305M Bare Copper Unshielded, PVC Jacket

What is Cat5e Cable?

Cat5e Cable: An enhanced version of Cat 5 for use with 1000 BASE - T ( gigabit ) networks, or for long - distance 100 Base - T links ( 350 m, compared with 100 m for Cat 5 ). It must meet the EIA / TIA 568A - 5 specification. Virtually all cables sold as Cat 5 are actually Cat 5e. The markings on the cable itself reveal the exact type.

4 Pairs LAN Cable Cat5e 305M Bare Copper Unshielded, PVC Jacket

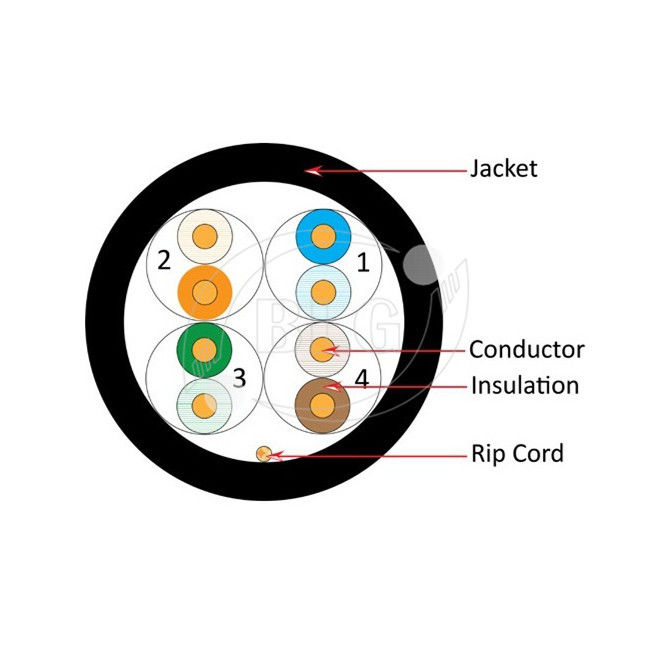

Cat5e LAN Cable Construction:

  1. Conductor: 28AWG 26AWG 24AWG CU CCA
  2. Insulation: 0.90mm HDPE
  3. Ripcord: Nylon
  4. Jacket: PVC
  5. Cable OD.: 5.3mm
  6. Jacket Color: White, Grey, Blue, Yellow, Red, Green, Orange, Pink, Purple etc.

4Pairs Cat5e LAN Cable - PVC Jacket
Type of Cable Cat.5E U / UTP
Length Per Roll 305M
Number of Pairs 4P
Flame Rating CMX, CM
Conductor Material Bare Copper / Copper Clad Aluminum Optional
Diameter 24AWG / 26AWG / 28AWG
Insulation Material HDPE
Diameter 0.90mm ± 0.02mm
Color Code Orange / White - Orange
Green / White - Green
Blue / White - Blue
Brown / White - Brown
Ripcord Material Nylon
Jacket Material PVC
Thickness 0.55mm ± 0.03mm
External O.D. 5.0 ± 0.2mm
Surface Bright an Smooth
Colors Optional

Cat5e LAN Cable Description:

  1. Rated Temperature: 60°C, 75°C, 90°C
  2. Bare Copper Conductor
  3. RoHS / CE Complied PVC Jacket
  4. Complies to ANSI / TIA - 568 - C. 2, ISO / IEC 11801
  5. Installation Temperature: - 30 ~ + 50
  6. Minimum Bending Radius: 4P 4D

Cat5e LAN Cable Application:

  1. 100 Base - TX
  2. 100 Base - T4
  3. 100 VG - AnyLAN
  4. 1000 Base - T ( Gigabit Ethernet )
  5. ATM

Cat5e LAN Cable Package:

  1. 305M / Roll / Easy Pull Color Box, 2 Boxes / Carton
  2. 500M / Wooden Reel, 2 Reels / Carton
  3. Customized Packages are Available
