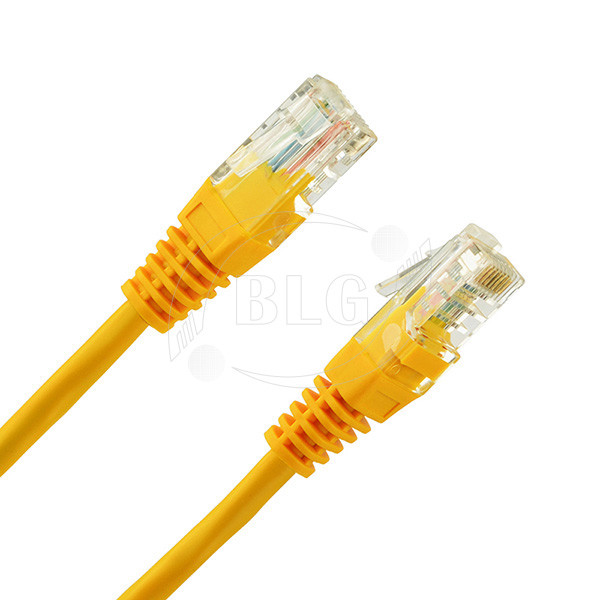

RJ45 Copper Network Ethernet Cable 4 Pairs UTP CAT5E
Patch cable 1M 2M 3M 5M 10M Jumper Cable
Cat 5e UTP Patchcords
Category 5e Unshielded Twisted Pair (UTP) patchcords conform to Class D standards. Our patchcords are made to the highest standards using only quality stranded cable giving you the best in flexibility and top grade 50μ gold plated RJ45 connector plugs. This combination makes for outstanding performance and reduced degradation. All patchcords are produced with a injection moulded boot with an easy depression latch cover. Available across 8 colours, 6 standard lengths and in PVC or LSZH jacket varieties.
| Interface Type | RJ45 8P8C 8P6C 8P4C etc. Gold plating Fu' to 50u' |
| Gender | Male to Male Molded Plugs |
| Item | UTP CAT5/CAT5E |
| Conductor material | Tin-copper, Bare Copper, Copper Clad Steel,Copper Clad Aluminum etc. |
| Conductor diameter | Solid&Stranded 0.40mm/0.45mm/0.51mm/0.57mm/7x0.16mm /7x0.20mm |
| Num of Conductor | 2Pair/4Pair/8Pair/24Pair/100Pair easily identified |
| Insulation material | PE/HDPE/PVC |
| Insulation diameter | 0.89mm |
| Spline | Option |
| PET | Option |
| Rip cord | Option |
| Jelly | Option |
| Jacket material | OD: 5.00mm,as Client's need PVC, ROHS PVC, LSZH, CM,PE |
| Print words on Cable | Available according to client's request. |
Application:
1). LAN Network System
2). Computer Network Distributing System
3). Telecommunication Network System
4). Testing Equipment System
5). CATV System
Wiring Scheme:
Pair 1 – White/Orange & Orange
Pair 2 – White/Green & Green
Pair 3 – White/Blue & Blue
Pair 4 – White/Brown & Brown
Electrical Characteristic
| Frequency | Return Loss | Attenuation | NEXT | PSNEXT | ELFEXT | PSELFEXT | Characteristic Impedance | Transmission Delay |
| MHZ | dB | dB | ≥dB | dB | ≥dB | ≤dB | ohm | ≤ns/100m |
| 1.0 | 23.0 | 2.0 | 65.3 | 62.3 | 64.0 | 61.0 | 100±15 | 570.0 |
| 4.0 | 23.0 | 4.1 | 56.3 | 53.3 | 52.0 | 49.0 | 100±15 | 552.0 |
| 10.0 | 23.0 | 6.5 | 50.3 | 47.3 | 44.0 | 41.0 | 100±15 | 545.4 |
| 16.0 | 23.0 | 8.2 | 47.2 | 44.2 | 39.9 | 36.9 | 100±15 | 543.0 |
| 20.0 | 23.0 | 9.3 | 45.8 | 42.8 | 38.0 | 35.0 | 100±15 | 542.0 |
| 31.25 | 21.0 | 11.7 | 42.9 | 39.9 | 34.1 | 31.1 | 100±15 | 540.4 |
| 62.5 | 18.0 | 17.0 | 38.4 | 35.4 | 28.1 | 25.1 | 100±15 | 538.6 |
| 100.0 | 16.0 | 22.0 | 35.3 | 32.3 | 24.0 | 21.0 | 100±15 | 537.6 |
