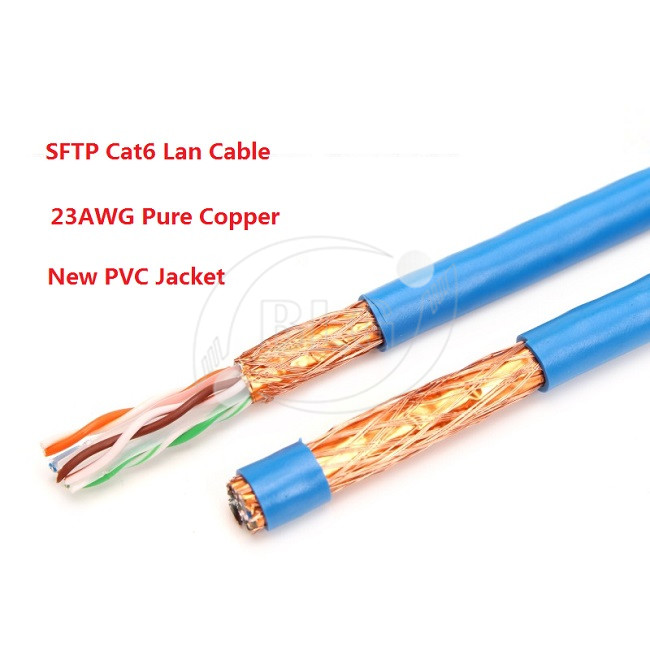

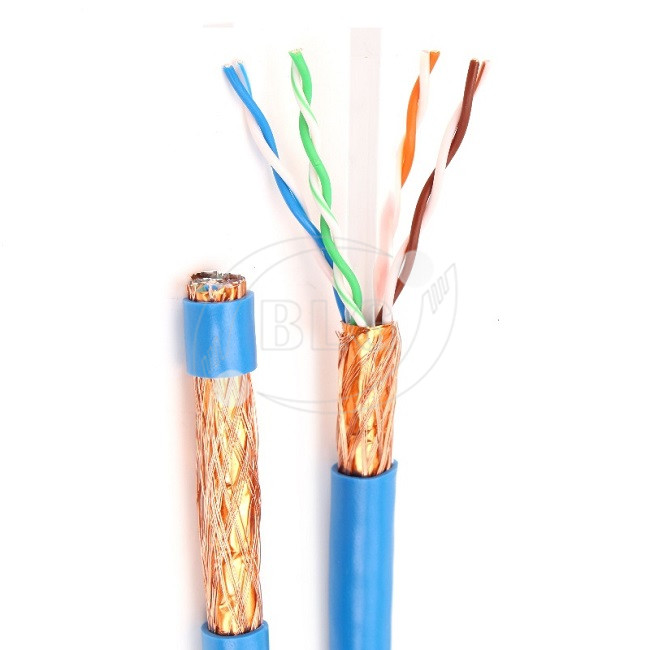

CAT6 STP CABLE 8 Conductor Solid Bare Copper 23 AWG 550mHz PVC Jacket 1000' Feet
* Shielded twisted pairs
* 23 or 24 AWG solid or stranded bare copper.
* Insulation/Jacket Thickness: 0.2/0.6 mm.
* Temperature range: -20°C~+75°C.
* Rid Cord, PE Cross, Drain Wire.
Reference Standard:
* TIA/EIA-568, CSAC22.2, ISO/IEC 11801, YD/T1019-2001
| OEM/ ODM Options |
| Conductor Diameter | 0.58mm, 0.57mm(23awg), 0.56mm, 0.52mm, 0.5mm, 0.48mm |
| Conductor Material | CU, CCA, CCAG, CCS, CCC |
| Type of Conductor | Solid, Stranded |
| Insulation Material | PE, PVC, LSZH, LSOH |
| Shielding Material | Aluminium foil, Tinned copper drain wire, Tinned Copper/Copper Braid |
| Shielding Coverage | 100%, 80%, 60% |
| Jacket(sheath) Material | PVC, LSOH, LSZH, PE, HDPE |
| Pair Identification | Pair 1: Blue,White / Blue; Pair 2: Orange,White / Orange;
Pair 3: Green,White / Green; Pair 4: Brown,White / Brown. |
| Number of Pair | 1 Pairs, 2 Pairs, 4 Pairs. |
| Package | 305m/box, 300m/500m/drum. |
| Other Options | PE Cross, Rid Cord, Customized Cable Label and Retail Package |
Product Application
Computer Network Cabling, Broadband Network Communication, Ethernet Network, Audio and Data Transmission.
Designed for network adapters, hubs, switches, DSL/cable, modems, patch panels, and other twisted-pair applications.
Engineering data
| DC loop resistance | Max. | 134Ω/km |
| Resistance unbalance | Max. | 2% |
| Propagation delay | | ≤570 ns/100m |
| Delay skew | Max. | ≤45 ns/100m |
| Impedance | 1-250MHz | 100±15Ω |
| Norminal velocity of propagation | | 67% |
| Capacitance | Norminal | 49 pF/km |
| Capacitance unbalance | Max. | 300 pF/km |
